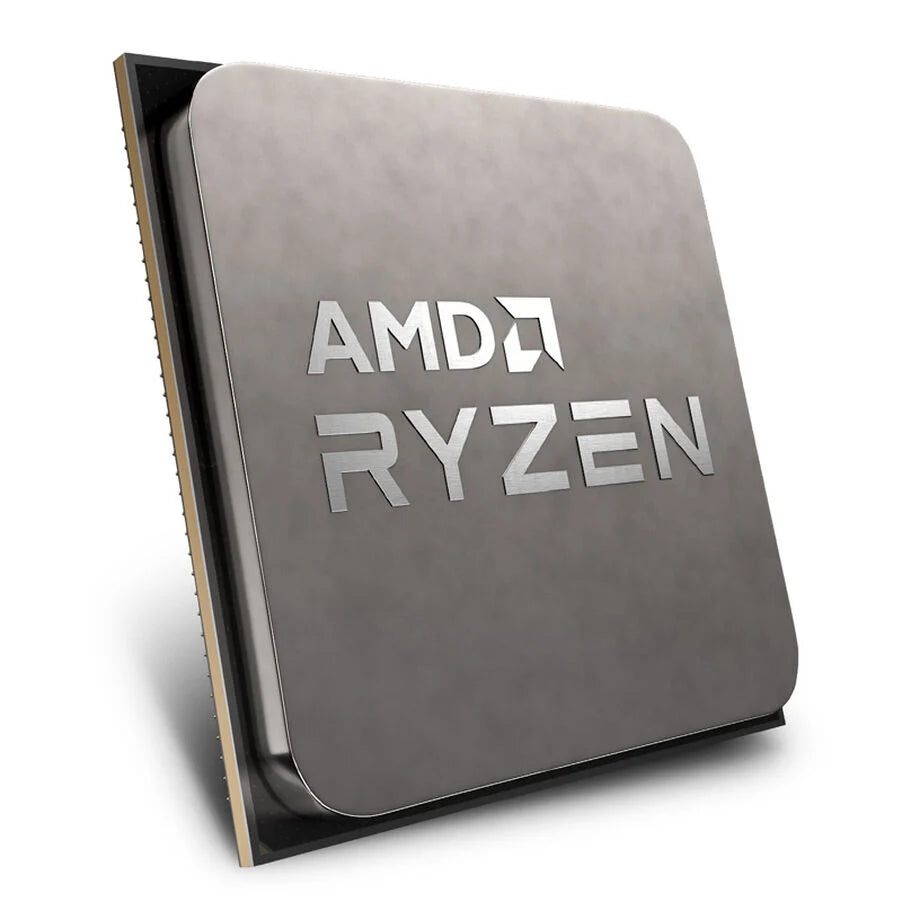

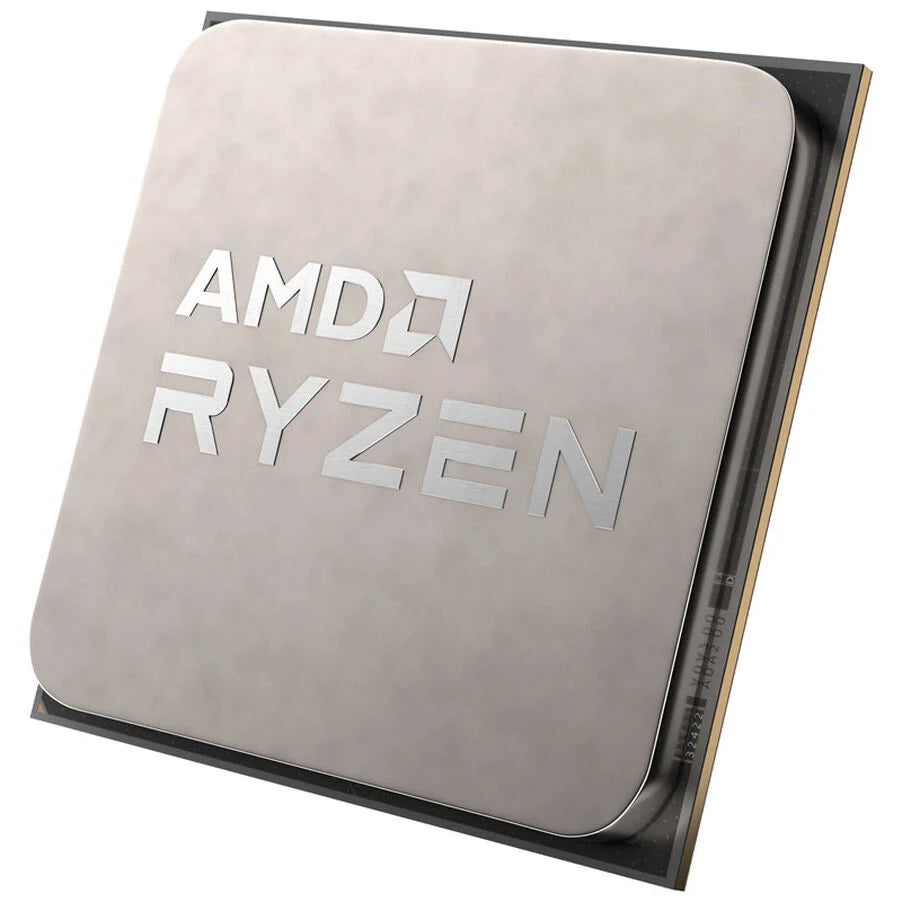

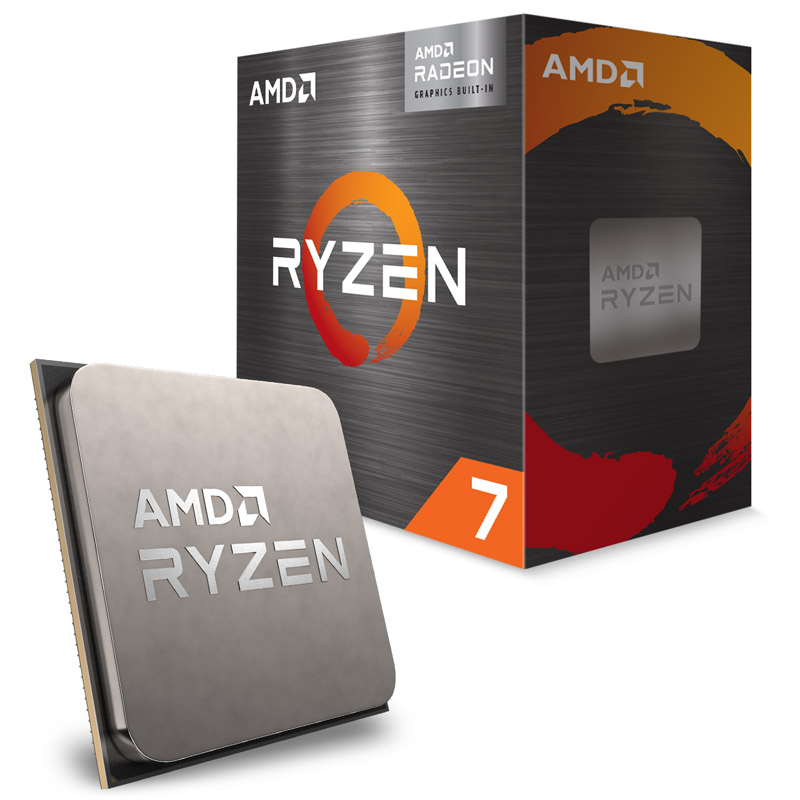

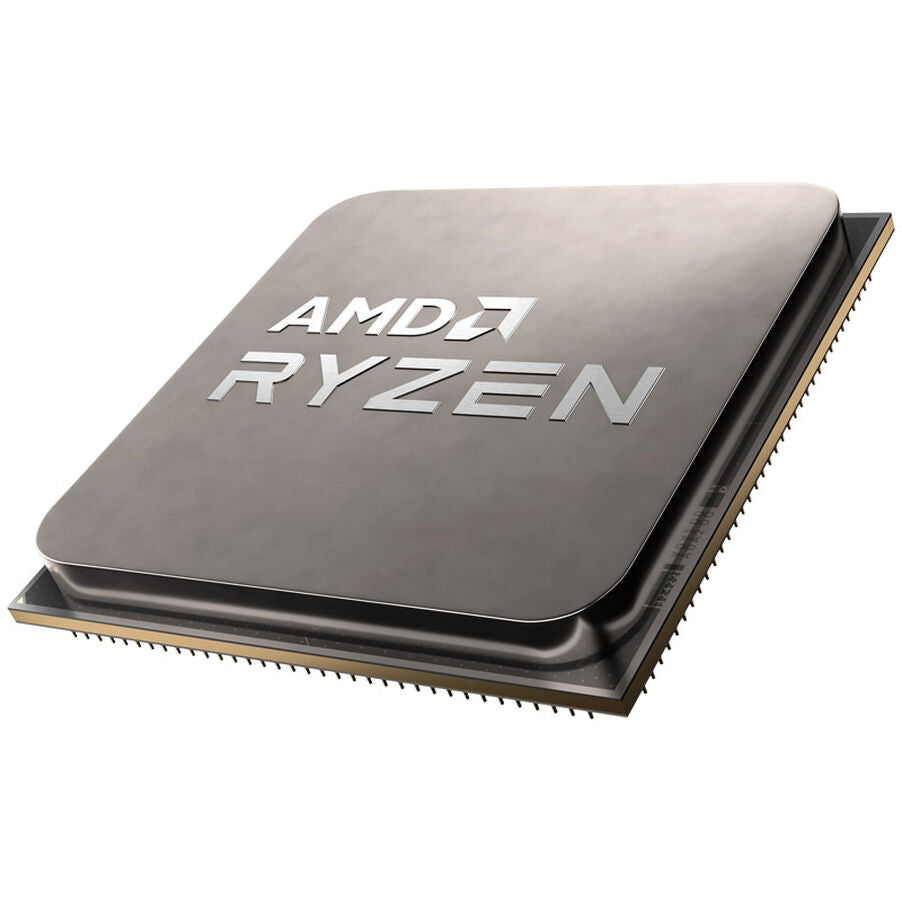

AMD Ryzen 7 5700G 3.8 GHz (Cezanne) Socket AM4 - Boxed with Wraith Stealth Cooler

The AMD Ryzen 7 5700G from the Cezanne processor family features eight CPU cores based on the "Zen 3" architecture . Following "Zen," "Zen+," and "Zen 2," this is the fourth generation of the Zen microarchitecture. Compared to the previous generation, each processor core now has access to the entire L3 cache, resulting in significantly improved gaming performance. Furthermore, the Ryzen 5000 processors offer significantly increased per-clock performance and a higher boost clock. The AMD Ryzen 7 5700G supports the PCI Express 3.0 standard. All Ryzen 5000 processors utilize the proven AM4 platform and are designed for use with compatible AMD chipsets. A BIOS update to AGESA 1.0.8.0 or later is required.

The AMD Ryzen 7 5700G at a glance:

• Eight "Zen 3" cores with only 65 watts Thermal Design Power (TDP)
• 16 threads thanks to Simultaneous Multithreading (SMT)
• Very high single- and multi-threaded performance
• Base clock speed of 3.8 GHz and 4.6 GHz Turbo with Precision Boost 2
• Integrated Radeon Vega 8 GPU with 8 CUs / 512 shaders / 2,000 MHz clock speed
• Fast PCI Express 3.0 interface
• Auto overclocking Precision Boost Overdrive
• Unlocked multiplier for manual overclocking (unlocked CPU)
• Large cache memory: 4 MB L2 and 16 MB L3
• Highly efficient, non-planar 7-nanometer FinFET transistors
• AVX2 - Instruction set extension for complex vector calculations
• Two AES units for fast, reliable data encryption
• Compatible with the AMD AM4 processor socket
• Natively supports DDR4 RAM at 3,200 MHz (dual-channel)

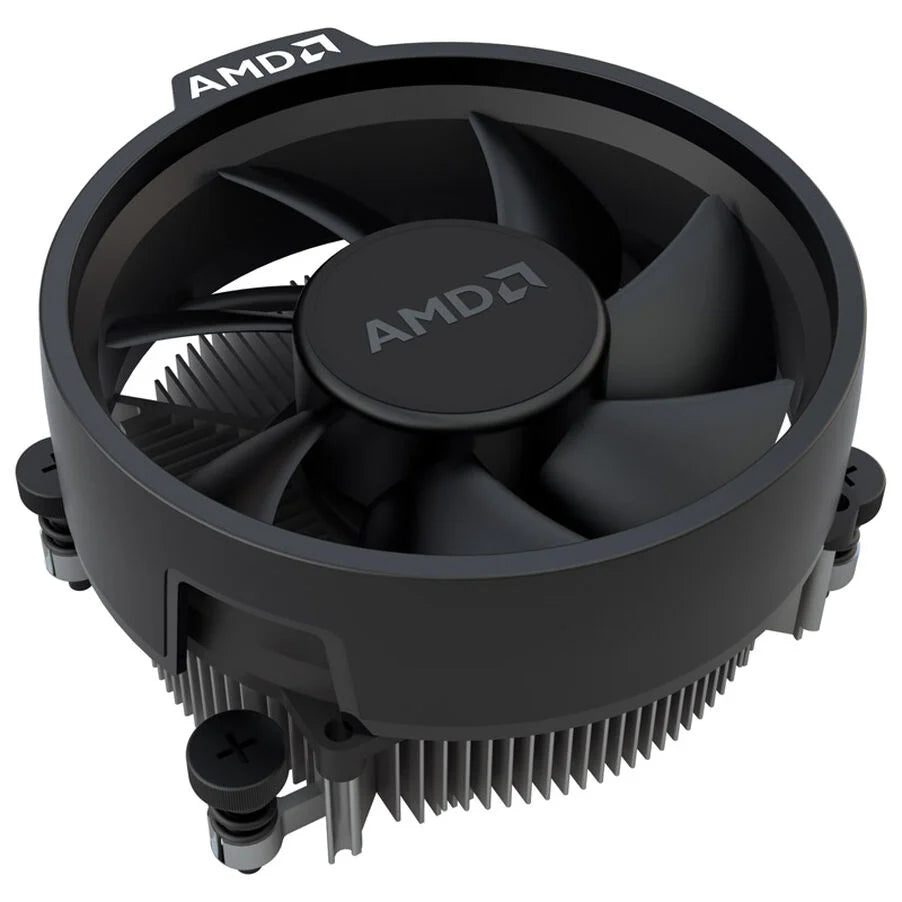

• Includes AMD Wraith Stealth CPU cooler!

---

The AMD Ryzen 7 5700G 8-core CPU with 4.6 GHz Precision Boost 2

The silicon of the CPU cores is lithographed using the advanced 7nm FinFET manufacturing process with stacked transistors (also called 3D transistors) using Extreme Ultraviolet (EUV) technology. The space gained on the processor die through the significantly reduced feature sizes allows for the integration of a total of 4 MB of Level 2 cache and a substantial 16 MB of Level 3 cache , which is particularly important for games.

The I/O chiplet in the CPU package, responsible for data lines, is manufactured using a 12-nanometer FinFET process and provides 24 PCIe lanes. Four lanes are reserved for the connection to the motherboard chipset and four for connecting NVMe SSDs. This leaves 16 lanes for communication with graphics cards, while additional PCIe lanes are provided for further storage devices, expansion cards, and peripherals, depending on the motherboard chipset.

---

PCI-Express 3.0 with AMD X570 or B550 chipset

The AM4 platform also features external device connections such as USB 3.1 with Type-A and/or Type-C connectors and high data transfer rates of up to 10 Gbit/s. The CPU's integrated memory controller supports fast and energy-efficient DDR4 RAM in dual-channel mode without ECC error correction at a native clock speed of 3,200 MHz, with significantly higher clock speeds possible through overclocking.

---

AMD Vega - Highly efficient graphics chips for the desktop

---

Automatic overclocking via Precision Boost Overdrive

Unlocked CPU: Manual overclocking thanks to an unlocked multiplier
