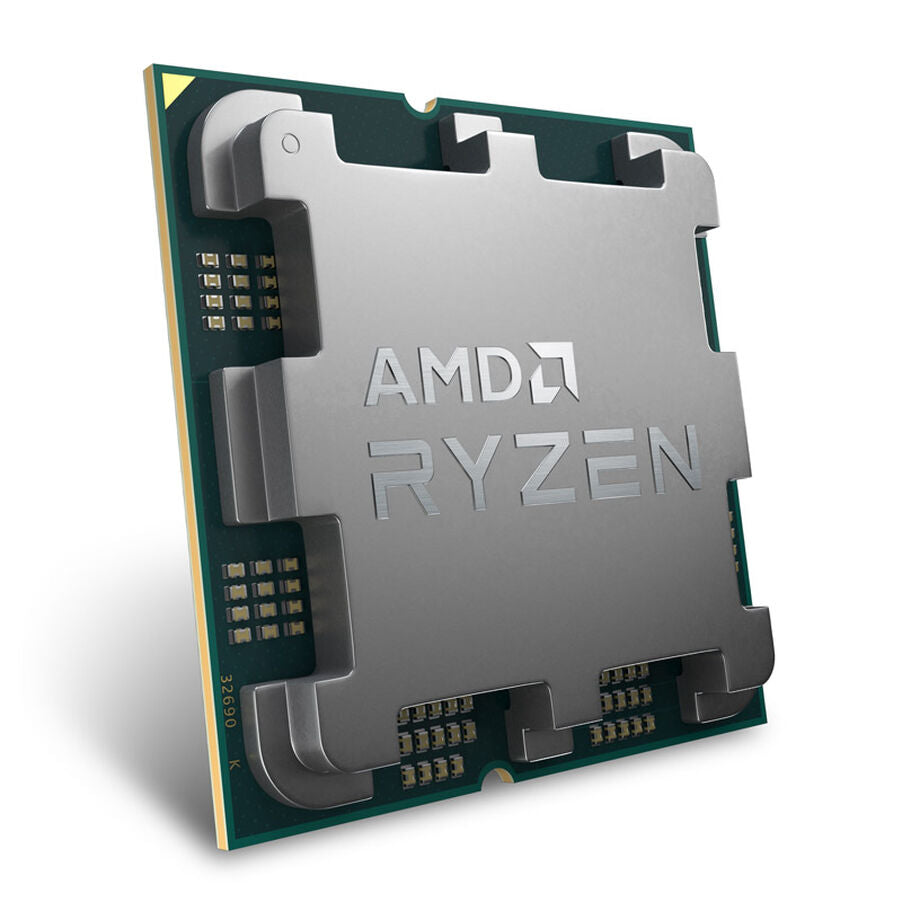

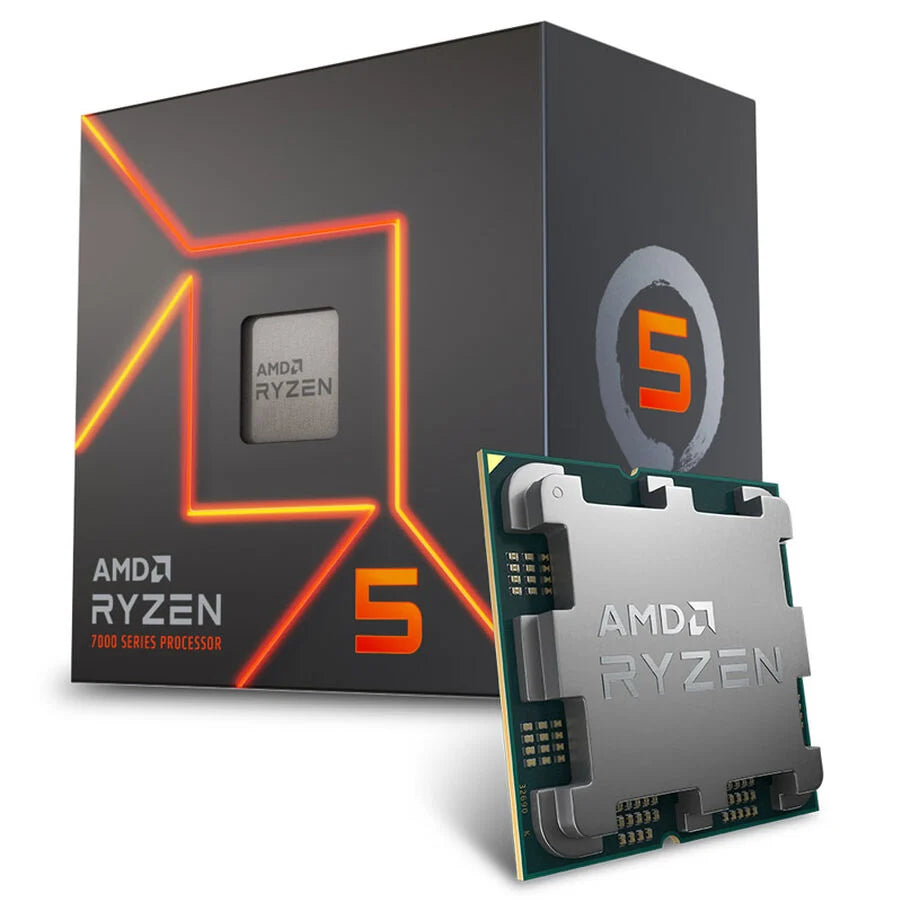

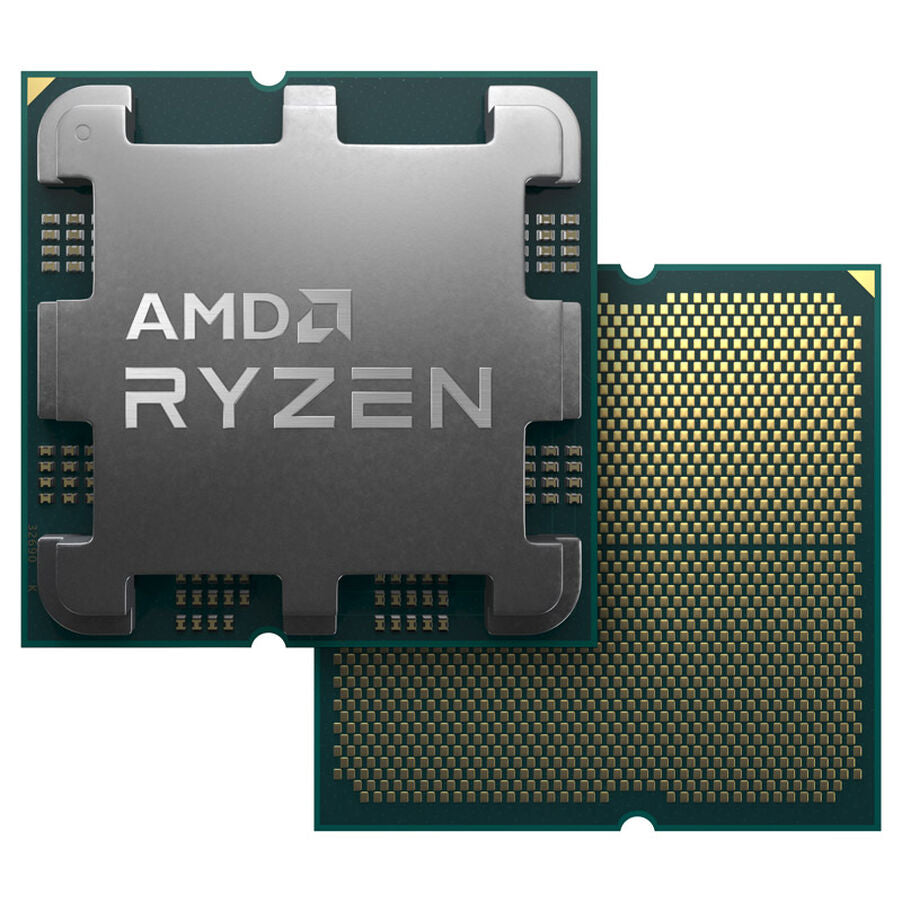

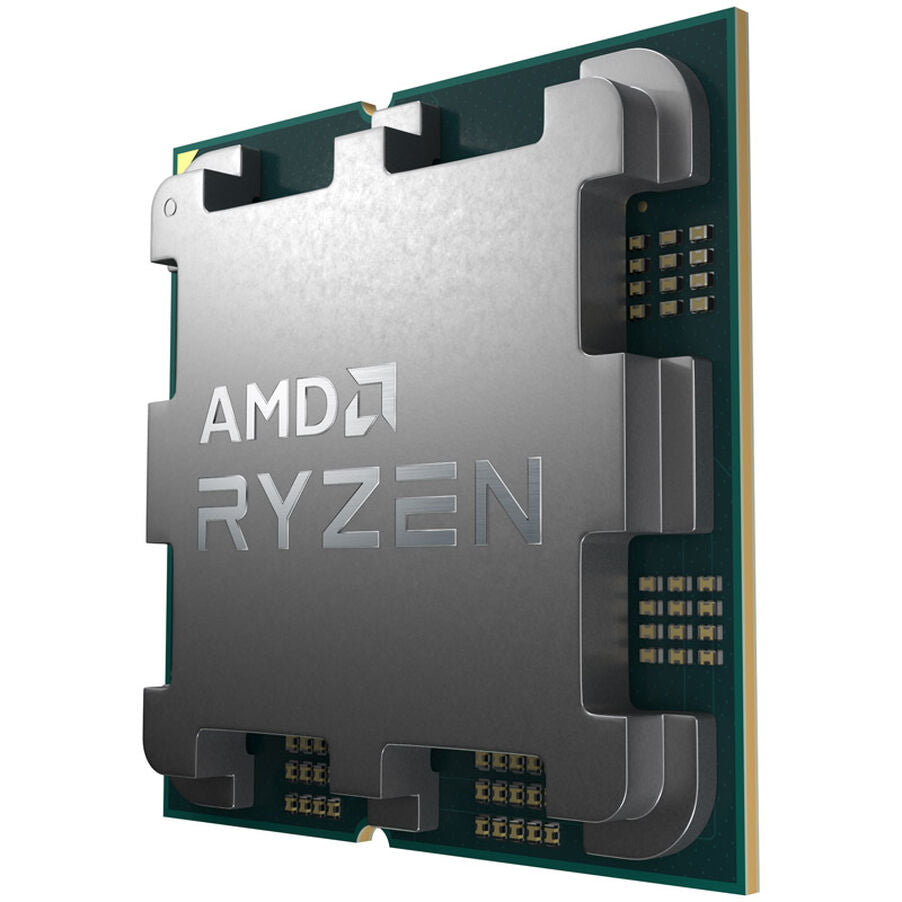

AMD Ryzen 5 7600 5.1 GHz (Raphael) AM5 - boxed

• 6 "Zen 4" cores with 65 watts Thermal Design Power (TDP)
• 12 threads thanks to Simultaneous Multithreading (SMT)
• Very high single- and multi-threaded performance
• Base clock speed of 3.8 GHz and 5.1 GHz Turbo
• Extremely fast PCI Express 5.0 interface
• Auto overclocking with Precision Boost 2
• Unlocked multiplier for manual overclocking (unlocked CPU)
• Large cache memory for gaming: 6 MB L2 and 32 MB L3
• Highly efficient, non-planar 5-nanometer TSMC transistors
• AVX-512 - Instruction set extension for complex vector calculations
• Compatible with the AMD AM5 processor socket
• Natively supports DDR5 RAM at 5,200 MHz (Dual Channel)

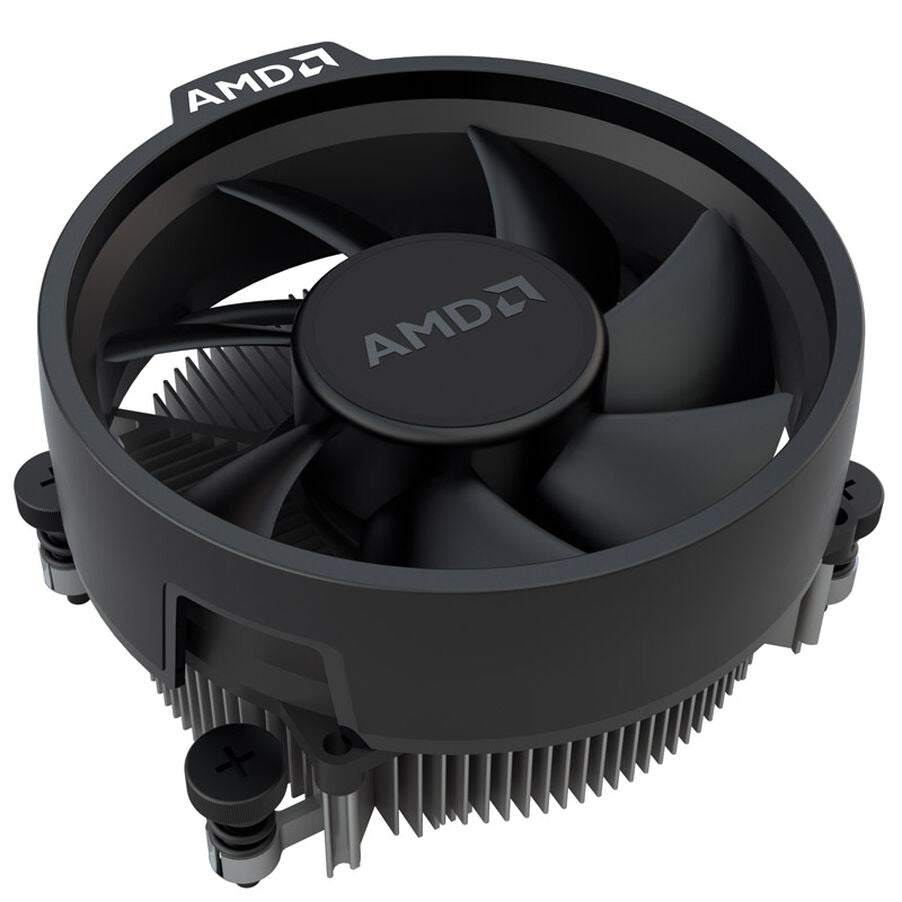

• with Wraith Stealth CPU cooler !

The AMD Ryzen 5 7600 at a glance

The AMD Ryzen 5 7600 from the Raphael processor family features six CPU cores based on the "Zen 4" architecture . Following "Zen," "Zen+," "Zen 2," and "Zen 3," this is the fifth generation of the Zen microarchitecture. Each processor core has access to the entire L3 cache, which contributes significantly to the improved performance in games.

When paired with a compatible AMD chipset, the AMD Ryzen 5 7600 supports the PCI Express 5.0 standard, which is twice as fast as PCIe 4.0. All Ryzen 7000 processors utilize the AM5 platform and were designed for use with compatible AMD chipsets.

---

The AMD Ryzen 5 7600 6-core CPU with 5.1 GHz

The silicon of the CPU cores is lithographed using the advanced 5nm FinFET manufacturing process with stacked transistors (also called 3D transistors) using Extreme Ultraviolet (EUV) technology. The space gained on the processor die through the significantly reduced feature sizes allows for the integration of a total of 6 MB of Level 2 cache and a substantial 32 MB of Level 3 cache , which is particularly important for games.

The I/O chiplet responsible for data lines within the CPU package is manufactured using a 6-nanometer process. The CPU provides a total of 28 PCIe lanes, of which four are reserved for the connection to the motherboard chipset and eight for connecting NVMe SSDs. This leaves 16 lanes available for communication with graphics cards, while additional PCIe lanes are provided for further storage devices, expansion cards, and peripherals, depending on the motherboard chipset.

---

PCI-Express 5.0 with AMD X670(E) or B650(E) chipset

The AM5 platform also features modern external device connections such as Thunderbolt 4 (or USB4) , USB 3.2 Gen 2x2 with Type-C connectors and high data transfer rates of up to 40 Gbit/s. The CPU's integrated memory controller supports fast and energy-efficient DDR5 memory with or without ECC error correction at a native clock speed of 5,200 MHz, with significantly higher clock speeds possible through overclocking. For this purpose, AMD has introduced special EXPO performance profiles tailored to the Ryzen 7000 series.

---

Automatic overclocking via Precision Boost 2

High-end motherboards with AMD chipsets typically have additional voltage regulator modules (VRMs), allowing the Ryzen 7000 processor to communicate with the chipset to access the motherboard's unused power reserves and automatically increase its clock speeds depending on CPU temperatures.

Unlocked CPU: Manual overclocking thanks to an unlocked multiplier
