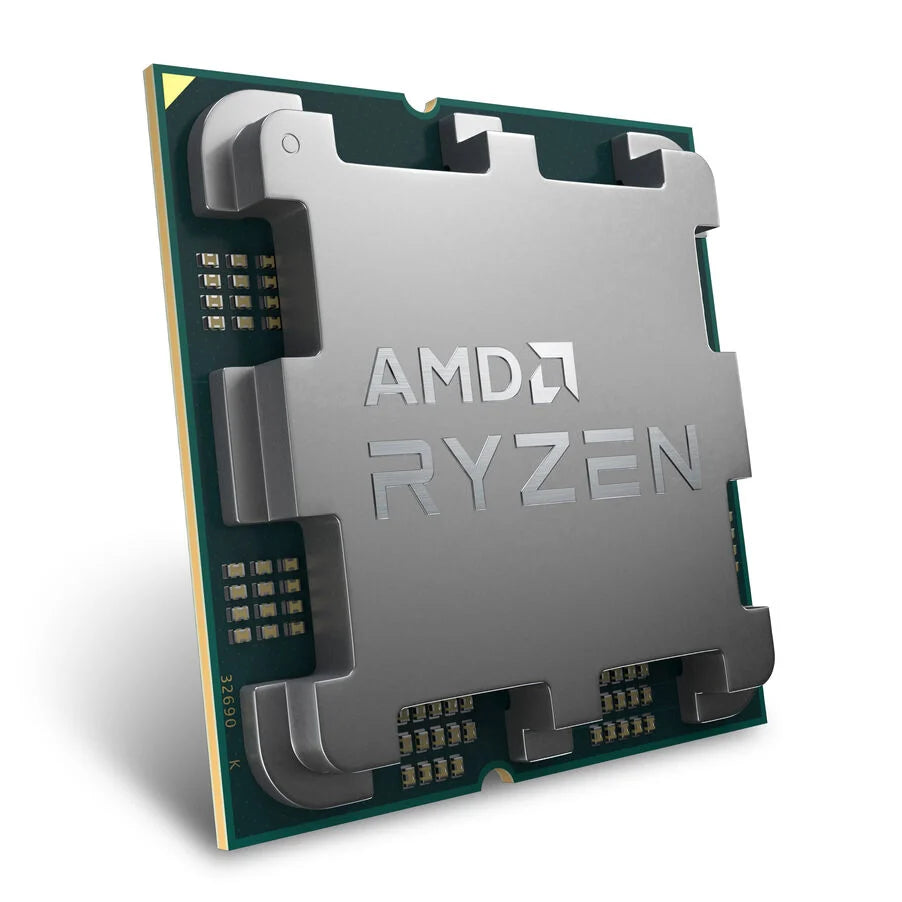

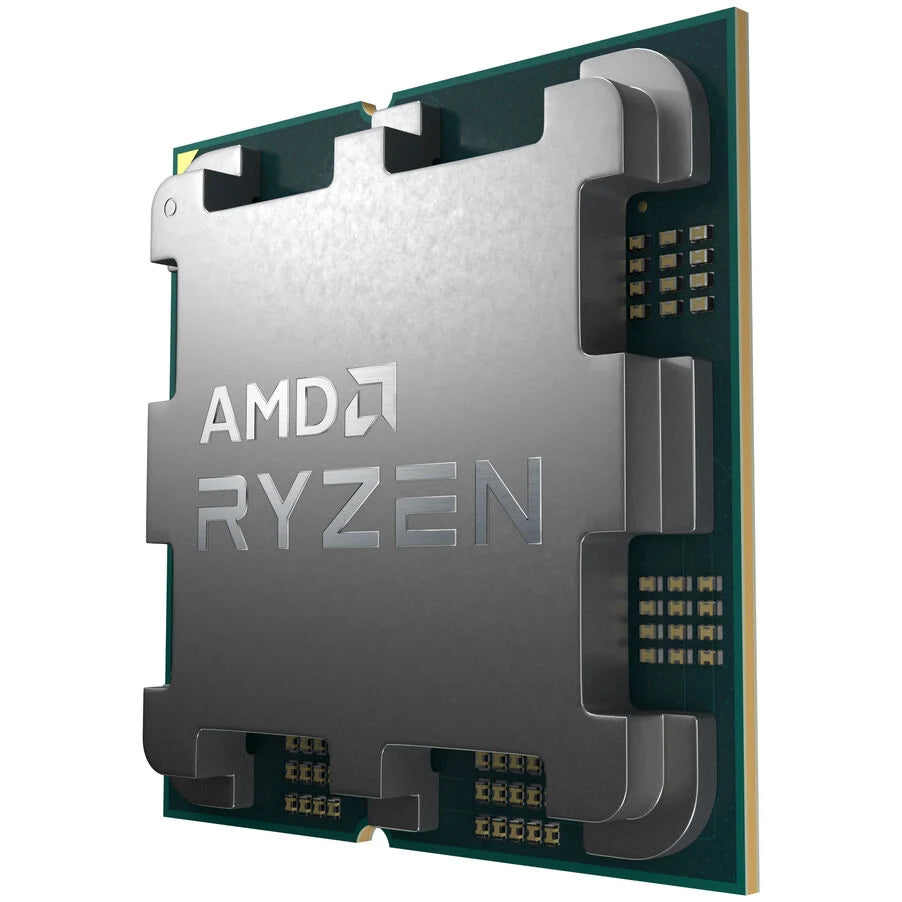

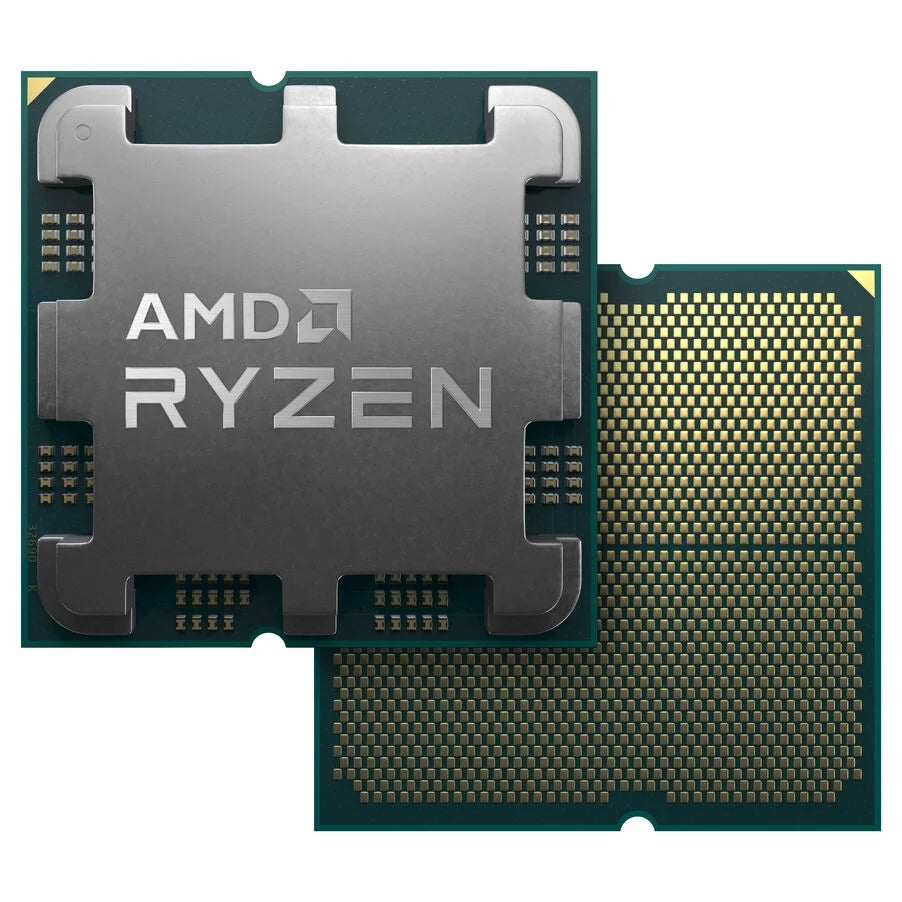

AMD Ryzen 5 9600 CPU, 6 cores, 5.2 GHz, AM5 (Zen 5) - tray, without cooler

• More efficient processing of multiple tasks simultaneously: 6 cores and 12 threads
• Zen 5 architecture for higher IPC: More instructions per clock cycle and increased overall performance
• High single- and multi-threaded performance: Ideal for games and professional applications
• Base clock 3.8 GHz, Turbo 5.2 GHz: Fast responsiveness and better performance
• PCI-Express 5.0: Higher data transfer rates, supports the latest graphics cards and NVMe SSDs
• Tray version without CPU cooler !

Overview of the AMD Ryzen 5 9600 desktop processor

The AMD Ryzen 5 9600 from the Granite Ridge processor family has 6 CPU cores based on the "Zen 5" architecture . Each processor core has access to the entire L3 cache. This contributes significantly to increased performance in games.

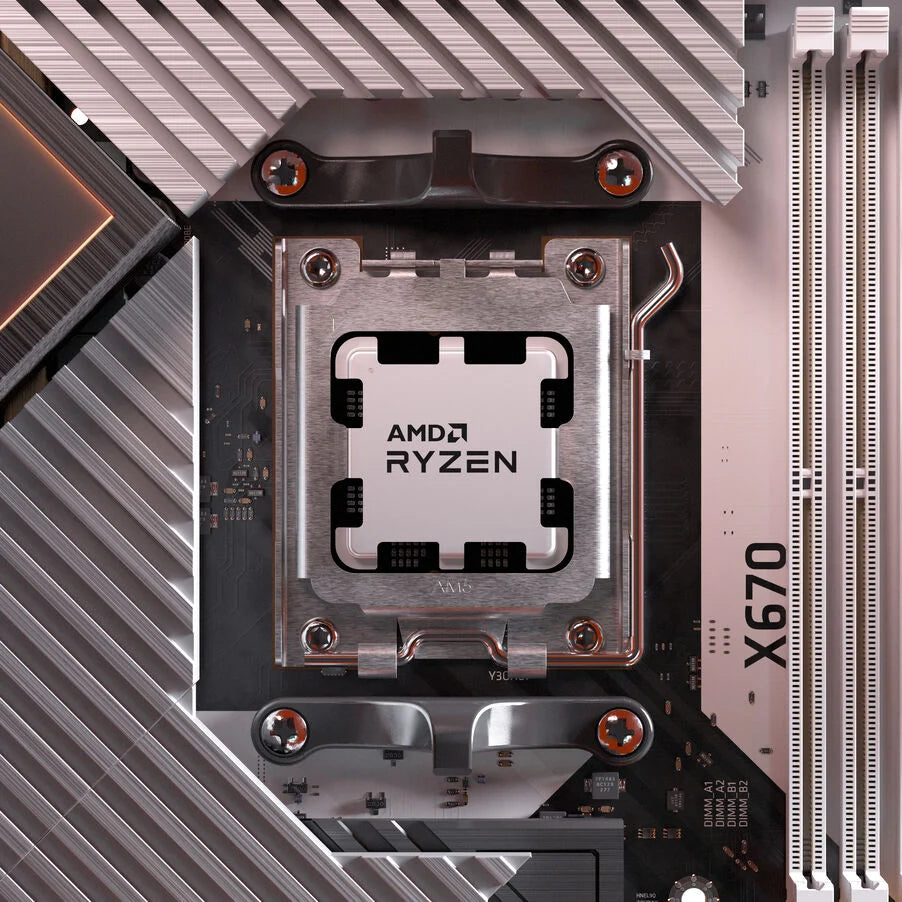

When paired with a compatible AM5 motherboard, the AMD Ryzen 5 9600 supports the PCI Express 5.0 standard, which is twice as fast as PCIe 4.0. All Ryzen 9000 processors utilize the AM5 platform and were designed for use with corresponding AMD chipsets.

The AMD Ryzen 5 9600 6-core CPU with a base clock speed of 3.8 GHz

The AMD Ryzen 5 9600 has 6 physical CPU cores , which, thanks to Simultaneous Multithreading (SMT), can each process two threads simultaneously, effectively doubling the number of processing cores to 12 threads with the additional 6 virtual cores.

The Ryzen 5 operates with a base clock of 3.8 GHz per core, which is precisely adapted to the respective application scenario in real time using Precision Boost 2 and increases to up to 5.2 GHz Turbo within the framework of the Thermal Design Power (TDP) of 65 watts .

Six CPU cores manufactured using a 4-nanometer process

The silicon of the CPU cores is manufactured using the advanced 4nm FinFET process . The space gained on the processor die through the significantly reduced feature sizes allows for the integration of a total of 6 MB of Level 2 cache and a substantial 32 MB of Level 3 cache , which are particularly important for games.

This improved manufacturing technology leads to higher efficiency and lower heat generation, allowing for greater performance headroom. As a result, gamers benefit from more stable and powerful system performance.

The I/O chiplet responsible for data lines in the CPU package is manufactured using a 6-nanometer process. The CPU provides a total of 28 PCIe lanes, of which four lanes are reserved for the connection to the motherboard chipset and eight lanes for connecting NVMe SSDs. This leaves 16 lanes available for communication with graphics cards.

Maximum performance thanks to PCI-Express 5.0

The AMD Ryzen 5 9600, when paired with a compatible motherboard, supports the PCI Express 5.0 standard. This standard is backward compatible and works with all older expansion cards. Compared to PCIe 4.0, PCIe 5.0 offers double the data transfer rate per lane. This allows an NVMe SSD connected via four PCIe 5.0 lanes to achieve theoretical read/write speeds of up to 15.6 GB/s.

The AM5 platform also features modern external device connections such as Thunderbolt 4 , USB 3.2 Gen 2x2 with Type-C connector and high data transfer rates of up to 40 Gbit/s.

Automatic overclocking via Precision Boost 2

With AMD Zen 5, you hardly need to worry about overclocking anymore, because the AMD Ryzen 5 9600 does it automatically for you. Thanks to the Precision Boost 2 auto-overclocking feature, the processor can increase the clock speed beyond the factory-set maximum boost clock limit. This automatic overclocking ensures optimized performance without any manual intervention on your part.

Unlocked CPU: Manual overclocking thanks to an unlocked multiplier

The AMD Ryzen 5 9600 is unlocked and has an unlocked multiplier , allowing you to freely adjust the multiplier. In the BIOS/UEFI or conveniently via software, you have the option to manually increase the clock speed or lower the voltage curve for even greater efficiency.

More possibilities with new AMD motherboards

High-end motherboards with the new AMD X870(E) or B850(E) chipsets are designed to maximize the performance of Ryzen 9000 processors. These motherboards feature advanced voltage regulator modules (VRMs) that allow the Ryzen 5 9600 to communicate efficiently with the chipset.

The next generation of chipsets not only supports the latest USB4 interfaces for faster connectivity, but is also compatible with existing AM5 600 series motherboards through BIOS updates.

AMD Radeon - Highly efficient RDNA graphics chips for the desktop

The Ryzen 9000 series "Granite Ridge" CPUs are equipped with an integrated Radeon graphics unit. The GPU consists of two compute units with a total of 128 shaders and a base clock speed of 2,200 MHz. Additionally, the Radeon chip supports AV1/VP9 decoding and H.264/H.265 encoding, and offers DisplayPort 2.0 for 8K at 120 Hz as well as HDMI 2.1 with 48 Gbps.
